Static Mixer AIM-S
The static mixer combines smart design with efficient process technology, reducing chemical consumption by up to 25%. The result is an optimized flocculation process with lower operating costs and improved performance.

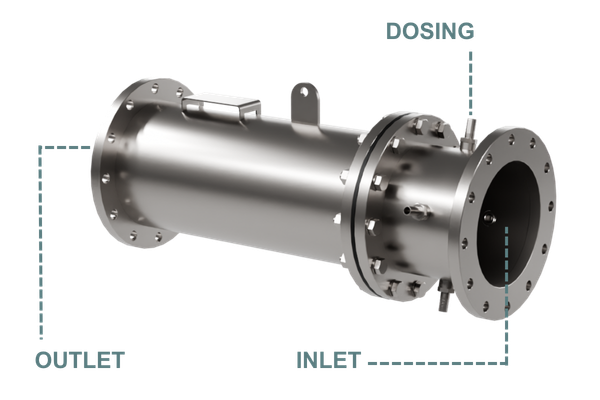

By optimizing the mixing of organic and inorganic flocculants, such as polymer, the mixer creates the right conditions for an effective and stable flocculation process. The flocculant is dosed directly before the mixer via a tangential injector ring with nozzles, quickly producing a homogeneous suspension.
The reaction starts immediately upon addition and is highly dependent on the energy and turbulence generated in the mixer. Controlled turbulence ensures rapid activation of the flocs, resulting in better dewatering and reduced chemical usage.
The static mixer can also be used to blend different media streams before chemical addition, providing increased process flexibility. For optimal performance, installation on the incoming sludge line is recommended, approximately 6–8 meters upstream of the equipment.
Installation can be horizontal or vertical. Four reinforced PVC hoses (1–2 meters, depending on placement) connect to the polymer distributor, included in the delivery from Autofric, and ideally positioned directly adjacent to the mixer.
Benefits
- Easy installation
- Low maintenance costs
- Reduced polymer consumption >15%
- Consistent performance (even with high media volume)
Models
| Model | Connection | Flow / Capacity | Material |
| AIM-S-65 | DN65 | 1-5 m3/h | AISI 304 |
| AIM-S-80 | DN80 | 1-25 m3/h | AISI 304 |
| AIM-S-100 | DN100 | 10-75 m3/h | AISI 304 |
| AIM-S-150 | DN150 | 65-130 m3/h | AISI 304 |
| AIM-S-200 | DN200 | 85-150 m3/h | AISI 304 |
| AIM-S-250 | DN250 | 145-220 m3/h | AISI 304 |
